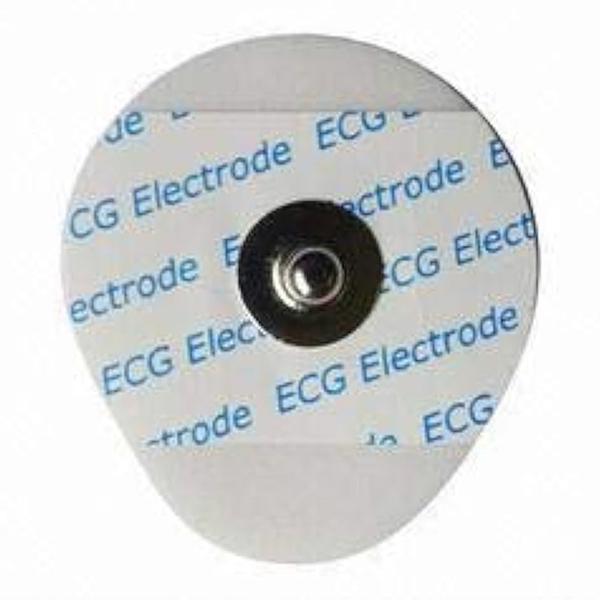

Disposable ECG Electrodes

Disposable ECG (Electrocardiogram) electrodes are self-adhesive patches used in electrocardiography to record the electrical activity of the heart. They are single-use devices commonly used in clinical settings for routine ECG tests.

Here’s a breakdown of their key features and components:

1. How they work

• Disposable ECG electrodes are placed on specific locations on the skin, typically on the chest, arms, and legs.
• They detect and transmit the electrical signals produced by the heart’s contractions to an ECG machine.
• The ECG machine then records these signals and generates a graphical representation called an electrocardiogram, which can be used to diagnose and monitor heart conditions.

2. Material composition

• Conductive Gel: Most commonly, electrodes feature a silver/silver chloride (Ag/AgCl) sensor and a medical conductive gel (solid, wet, or semi-solid). This gel provides the necessary interface for accurate electrical signal transmission and adheres to the skin.
• Adhesive Layer: A strong medical-grade adhesive ensures secure contact between the electrode and the skin throughout the ECG recording, even during physical activity or when the patient sweats.
• Backing Material: The electrode’s backing can be made of various materials like foam, non-woven fabric, or cloth tape, each offering distinct advantages:
  • Foam: Durable, provides secure adhesion, suitable for extended use.
  • Non-Woven Fabric: Hypoallergenic, breathable, ideal for patients with sensitive skin.
  • Cloth: Soft, breathable, also preferred for sensitive skin.

3. Design considerations

• Size and Shape: Electrodes come in various sizes (e.g., typically 45 mm to 55 mm in diameter) and shapes (round, teardrop, or square) to accommodate different patient needs and body areas.
• Connector Type: Disposable electrodes typically utilize a standard snap connector, allowing easy attachment and removal of lead wires from the ECG machine.
• Latex-Free: To minimize the risk of allergies and skin irritation, most disposable ECG electrodes are manufactured using latex-free materials.

4. Key advantages

• Hygiene and Reduced Infection Risk: Being single-use, disposable electrodes eliminate the need for cleaning and disinfection, significantly reducing the risk of cross-contamination and hospital-acquired infections (HAIs).
• Convenience and Time-Saving: Disposable electrodes streamline the ECG procedure as they are easy to apply and remove, requiring minimal preparation and reducing the overall setup and cleanup time for healthcare professionals.
• Reliability: The use of fresh, sterile electrodes ensures consistent signal quality and performance for each patient.
• Patient Comfort: The choice of soft backing materials and hypoallergenic gels contributes to enhanced patient comfort, even during long-term monitoring.

In summary, disposable ECG electrodes provide a hygienic, convenient, and reliable solution for obtaining accurate electrocardiogram readings, contributing to improved patient care and streamlined clinical workflows.
